Harmar Helix Curved Stair Lift

spacer

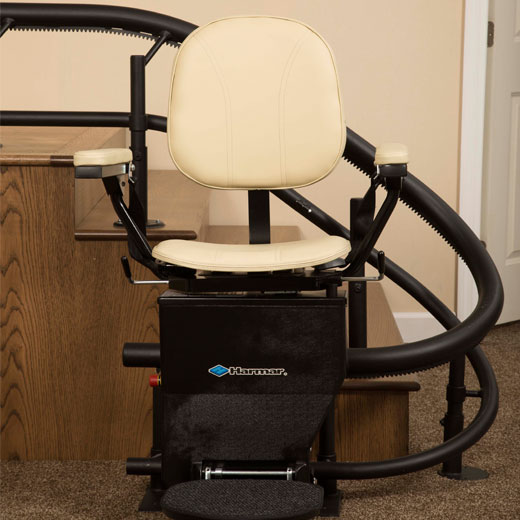

  • Harmar Helix Curved Stair Lift

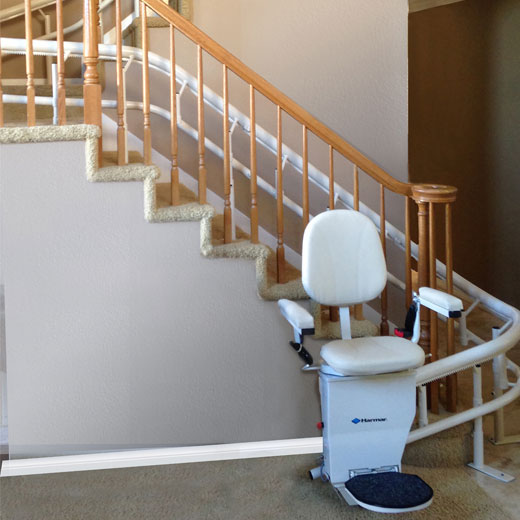

  • Showing Lift Mounted to a Staircase

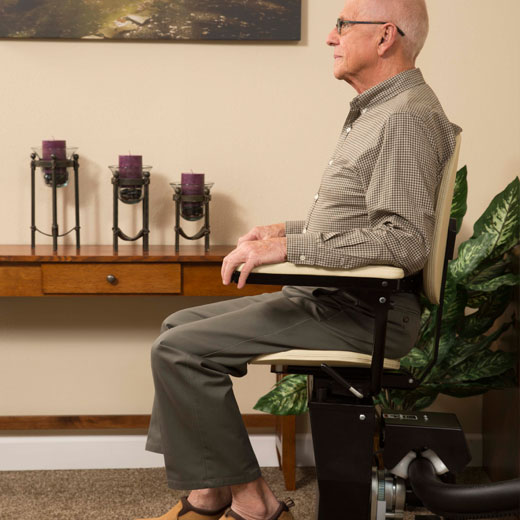

  • Person Riding on an Optional Colored Seat and Track
spacer
click an image to enlarge

Return Policy

Each curved stair lift must be custom manufactured to suit the unique requirements of the site. The unit is manufactured to the exact dimensions of the site application as determined by the digital survey and no two applications are alike. Lifts go into factory production immediately upon submission of the order to the factory which is after customer signs off on the CAD drawing. Accordingly, AmeriGlide has a substantial investment in resources and labor and as such we have a 25% cancellation fee for any order cancelled after the measurement survey but prior to submission for production, 50% once the lift is in production. Once a custom stair lift order has been shipped it cannot be canceled or returned. The shipment cannot be refused. No refund will be made for orders of this status.

Add To Cart
$17,090.00
$12,440.00
Plus Shipping
Product Review
(0)
(0)
A Helix Curved Stair Lift is one of a kind, made just for you. Harmar designs are crafted to fit your needs, staircase, and decor.

The Helix is built to last. Every staircase that is fitted with a Helix is measured with a calibrated camera kit for digital accuracy. Constructed with highly durable steel, custom precision-bent rails, and finished by experienced craftsmen, this true curved rail is highly engineered to give you an extraordinarily smooth ride.

Your unique path to independence will allow you to enjoy time with your family and your home on every level giving you independence, freedom and the quality of life you deserve.

Helix Curved Stair Lift is not user installable.

Features:
  • Narrower profile
  • Extremely quiet, smooth ride
  • True-Curve rail with advanced bending technology creates smoother turns
  • Supportive, ergonomic seating
  • Simple-connect rails and lighter chassis for easy installation
* CT, MI and WA residents need to check their local building codes to ensure compliance.
spacer
Features
Drive TypeSteel Rack and Pinion
Battery PoweredYes
Self InstallableNo
Basic Installation IncludedNo
Standard Capacity350 lb
Max Track Length, Standard20'
Max Track Length, Optional164'
Seat Width19"
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsYes
Constant Pressure ControlsYes
Footrest Safety SensorYes
Unit Footprint, Folded16"
Rail Angle, Max60°
Digital Diagnostics DisplayNo
Key LockYes

Options Available

  • Use Case

    • Residential
      $0.00
      No Image
      spacer
    • Commercial or Washington State - Mounted on Left Side of Stairs
      $422.00
      No Image
      spacer
    • Commercial or Washington State - Mounted on Right Side of Stairs
      $422.00
      No Image
      spacer
  • Seat Color

    • Beige
      $0.00
      No Image
      spacer
    • Black
      $0.00
      No Image
      spacer
  • Rail Color

    • Beige
      $0.00
      No Image
      spacer
    • Black
      $0.00
      No Image
      spacer
  • Base Unit

    • 90 Degree first turn, up to 18' rail
      $0.00
      90 Degree first turn, up to 18' rail
      spacer
    • 90 degree first turn, up to 24' rail
      $1,200.00
      No Image
      spacer
    • 180 degree first turn, up to 18' rail
      $1,605.00
      180 degree first turn, up to 18' rail
      spacer
    • 180 degree first turn, up to 24' rail
      $2,650.00
      No Image
      spacer
    • Custom applications, up to 24' rail
      $19,362.00
      No Image
      spacer
    • Sweep, up to 24' rail
      $8,100.00
      Sweep, up to 24' rail
      spacer
    • Spiral, up to 24' rail
      $17,885.00
      Spiral, up to 24' rail
      spacer
    • Straight with Overrun, up to 16' rail
      $0.00
      Straight with Overrun, up to 16' rail
      spacer
    • Straight with Intermediate landing, up to 16' rail
      $0.00
      No Image
      spacer
  • Options

    • Seat Belt
      $0.00
      No Image
      spacer
    • Top & Bottom Call-Send Stations
      $0.00
      No Image
      spacer
    • Additional Call/Send
      $272.00
      No Image
      spacer
    • 90 Degree Park
      $2,279.00
      No Image
      spacer
    • 90 Degree Turn
      $2,136.00
      No Image
      spacer
    • 180 Degree Park
      $2,993.00
      No Image
      spacer
    • 180 Degree Turn
      $2,850.00
      No Image
      spacer
    • Additional Track (per foot)
      $165.00
      No Image
      spacer
    • Extra Spiral (per foot)
      $786.00
      No Image
      spacer
    • Extra Sweep (per foot)
      $472.00
      No Image
      spacer
    • Additional Charge Station
      $508.00
      No Image
      spacer
    • Drop Nose
      $322.00
      No Image
      spacer
    • Key Switch
      $272.00
      No Image
      spacer
    • Red Emergency Stop Button
      $193.00
      No Image
      spacer
    • Outdoor Package
      $4,590.00
      No Image
      spacer
  • Orientation (looking UP the staircase)

    • The stair lift will be on the left
      $0.00
      No Image
      spacer
    • The stair lift will be on the right
      $0.00
      No Image
      spacer
  • Installation

    • Measure and Installation is Required
      $1,175.00
      No Image
      spacer
    • Is There a Stair Lift Currently Installed Where this Curved Stair Lift Will Be Going?
      $0.00
      No Image
      spacer
    • Stair Lift Removal Service
      $499.00
      No Image
      spacer
    • CAD Service - A $2500 CAD Cost Will be Charged if the Stairlift Order is Cancelled
      $0.00
      No Image
      spacer
    • Permit (Required in Kentucky for EACH item being installed)
      $87.50
      No Image
      spacer
  • Installation Special Cases

    • Installation On Concrete, Steel, or Tile Stairs is available.
      $460.00
      No Image
      spacer
    • Most sprial staircases will not accept a curved lift if the staircase is made with a single center pole.
      $0.00
      No Image
      spacer
spacer
What customers say about this product...
This product currently has no reviews. Would you like to leave one?
