Harmar Summit AC Straight Outdoor Stair Lift

spacer

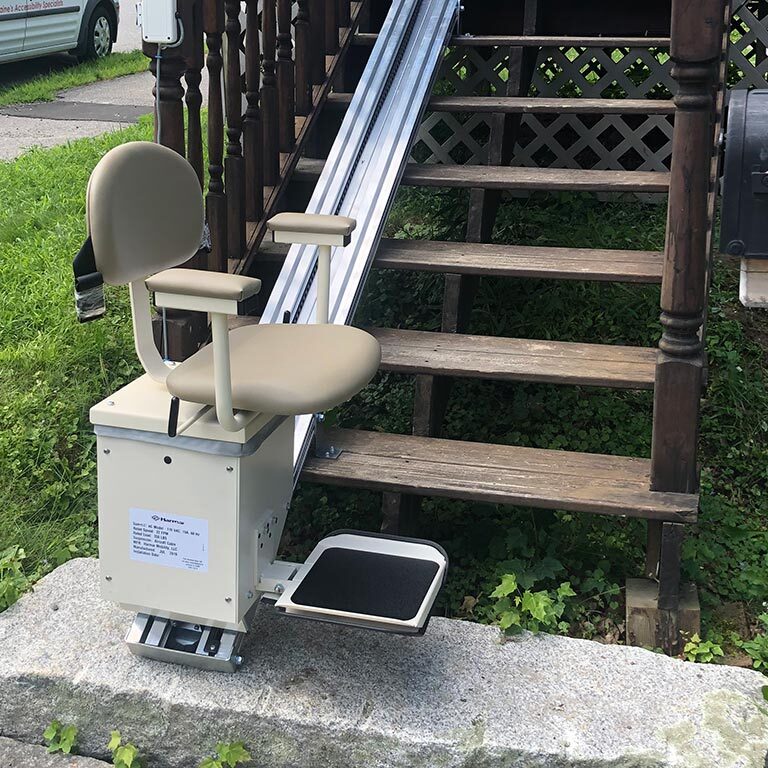

  • Harmar Summit AC Straight Outdoor Stair Lift

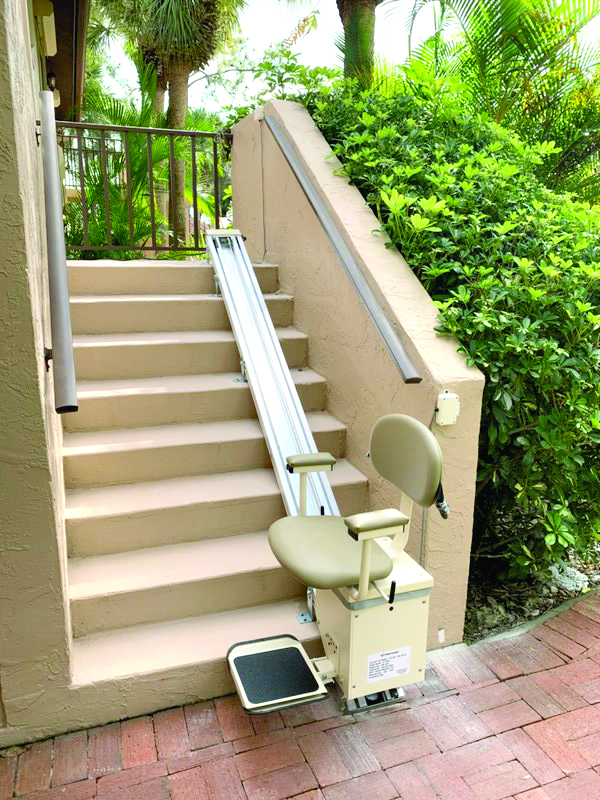

  • Showing Lift Installed on Outdoor Stairs

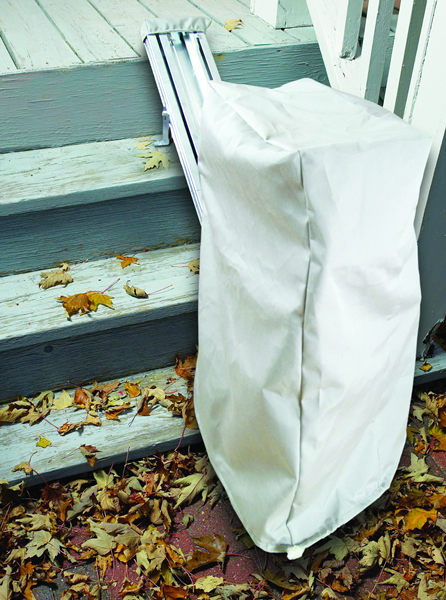

  • Showing with Lift Covered against Weather
spacer
click an image to enlarge
Add To Cart
$5,495.00
$4,085.00
Plus Shipping
Product Review
(0)
(0)
Write a review!
The Summit Outdoor Stair Lift is engineered with a durable extruded aluminum track and marine-grade vinyl seating to handle rain, wind, snow, and temperatures from 0 degrees to 125 degrees. Includes header, internal chassis, and large weatherproof cover for protection of outside elements.
(Note: weight capacity is reduced to 250 pounds if the track length is 16 feet or longer.)

Outdoor Stair Lifts are not intended for use in snow and ice


Features:
  • Header cover, internal chassis cover and a large weatherproof cover included
  • Rocker controls with constant-pressure functionality stop the lift immediately if the control is released
  • Mounts to the stairs (not the wall) on either side of staircase
  • Operates on standard 115V AC household current
  • Extruded aluminum track is available in custom lengths
  • Seat and footrest fold to save space
  • Seat cushions in exterior marine grade vinyl
  • Separate controls at top and bottom of stairs
* CT, MI and WA residents need to check their local building codes to ensure compliance.
spacer
Features
Drive TypeCable
Battery PoweredNo
Self InstallableYes
Basic Installation IncludedNo
Standard Capacity350 lb
Max Track Length, Standard15.5'
Max Track Length, Optional25'
Track MaterialAluminum
Seat Width17.5"
Seat Depth14"
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsNo
Constant Pressure ControlsYes
Footrest Safety SensorYes
Unit Footprint, In Use24.5"
Unit Footprint, Folded14"
Track Footprint12"
Track Width8"
Call Stations IncludedWired
Rail Angle, Min30°
Rail Angle, Max45°
Digital Diagnostics DisplayNo
Key LockNo

Options Available

  • Vinyl Seat Color

    • Light Almond
      $0.00
      Light Almond Seat - Summit Stair Lift
      spacer

  • Seat Size

    • 17.5" W
      $0.00
      No Image
      spacer

  • Options

    • Keylock Package - Keyed Base & Keyed Call-Send Controls
      $443.00
      No Image
      spacer
    • Keyed Base Only
      $236.00
      No Image
      spacer
    • Grocery Basket
      $293.00
      No Image
      spacer
    • Wireless Call/Send Controls For Outdoors
      $565.00
      No Image
      spacer

  • Track Length (15' is Standard *)

    • * Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.
      $0.00
      No Image
      spacer
    • 15' of track * (180")
      $0.00
      No Image
      spacer
    • Custom Cut track Less Than 15'
      $150.00
      No Image
      spacer
    • Track length 16' and over reduces weight capacity to 250 pounds
      $0.00
      No Image
      spacer
    • Custom Cut 16' to 18' of track (180" to 216") 250 lb Capacity
      $350.00
      No Image
      spacer
    • Custom Cut 18' to 25' of track (216" to 300") 250 lb Capacity
      $565.00
      No Image
      spacer
    • 20' of track Uncut 250 lb Capacity
      $250.00
      No Image
      spacer
    • 25' of track Uncut 250 lb Capacity
      $565.00
      No Image
      spacer

  • Orientation (looking UP the staircase)

    • The stair lift will be on the left
      $0.00
      No Image
      spacer
    • The stair lift will be on the right
      $0.00
      No Image
      spacer

  • Installation

    • NOTE: We do not perform installations in Oregon or Washington. Please choose Self-Installation at checkout if you live there.
      $0.00
      No Image
      spacer
    • Self Installation
      $0.00
      No Image
      spacer
    • Nationwide Installation (Not available in Oregon or Washington)
      $599.00
      No Image
      spacer
    • Nationwide Measurement Service - Requires an Installation Selection (Not available in Oregon or Washington)
      $749.00
      No Image
      spacer
    • Double Stair Lift Installation Service - Per Stair Lift (Not available in Oregon or Washington)
      $437.50
      No Image
      spacer

  • Installation Permit

    • License / Permit / Inspection
      $425.00
      No Image
      spacer
    • Permit and Inspection
      $350.00
      No Image
      spacer
    • Permit (Required in Kentucky for EACH item being installed)
      $87.50
      No Image
      spacer
    • Permit & Inspection (Required in Georgia for EACH item being installed)
      $250.00
      No Image
      spacer
    • Permit & Inspection (Required in Alabama. Additional units incur additional fee.)
      $300.00
      No Image
      spacer

  • Installation Special Cases

    • Installation On Concrete, Steel, or Tile Stairs
      $300.00
      No Image
      spacer
    • Installation In Remote or Limited Access Location
      $285.00
      No Image
      spacer
    • Existing Stair Lift Removal
      $499.00
      No Image
      spacer
    • Additional Charge for Installation in the States of: New York, and Massachusetts
      $150.00
      No Image
      spacer

  • Measurements

    • Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.
      $0.00
      No Image
      spacer
    • 1. Overall length
      $0.00
      No Image
      spacer
    • 2. Top stair to bottom stair
      $0.00
      No Image
      spacer
    • 3. Staircase width
      $0.00
      No Image
      spacer
    • 4. Bottom clearance
      $0.00
      No Image
      spacer
    • 5. Rise of one step
      $0.00
      No Image
      spacer
    • 6. Tread of one step
      $0.00
      No Image
      spacer
    • 7. Diagonal
      $0.00
      No Image
      spacer
    • 8. Door at the top
      $0.00
      No Image
      spacer
    • Need help measuring? Print out the "How to Measure" worksheet.
      $0.00
      No Image
      spacer
